The Gaochuang Combined Table-Type CNC Cutting Machine redefines the spatial economics of metal fabrication workshops, where floor space is often as valuable as the steel itself.
You face a common dilemma: Portable CNC Cutters are easy to move but lack the rigidity for high-precision work and look flimsy on uneven floors, while Traditional Heavy Gantry Machines offer rock-solid stability but are massive, expensive to ship, and impossible to disassemble once installed.
What if you didn’t have to compromise?
Enter the Gaochuang Combined Table-Type CNC Cutting Machine. It is engineered to break the rules—offering the stability of a gantry system in a compact, fully detachable package designed for global logistics and tight workshops.

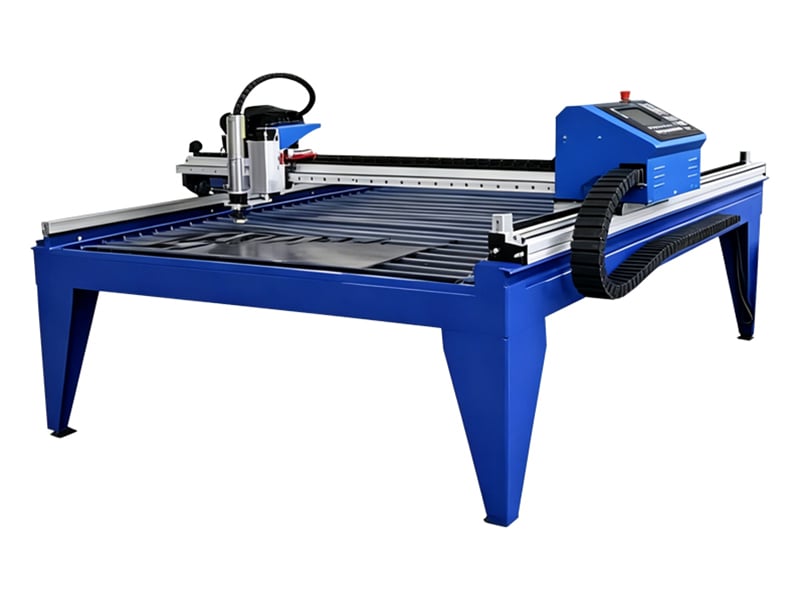

Combined Table-Type
Combined Table-Type: Redefining “Compact” for Logistics and Precision
Unlike welded heavy-duty machines that require cranes to move, our Table-Type series is designed with a Modular Assembly Architecture.
| Feature | Traditional Gantry | Portable Cutter | Gaochuang Table-Type |
|---|---|---|---|
| Structure | Heavy, welded frame | Light aluminum profile | Detachable Steel Frame (Bolted) |
| Shipping | Requires Flat Rack/Open Top | Standard Container | Fits Easily in Standard Container |
| Assembly | Permanent Installation | Plug & Play | Easy Bolt-Together Setup |
| Stability | ⭐⭐⭐⭐⭐ | ⭐⭐ | ⭐⭐⭐⭐ (Industrial Grade) |
| Footprint | Large (Fixed) | Small | Compact & Space Saving |
Key Advantage: The “Table” Design Difference
By utilizing a robust table structure rather than a simple rail system, this machine achieves a bare machine weight of 270kg – 300kg (depending on model). This added mass dampens vibration during cutting, ensuring that your positioning accuracy remains at ±0.2mm, even at rapid traverse speeds of 6000mm/min.
Combined Table-Type: Dual-Process Power in a Small Footprint
Don’t let the compact size fool you. This machine is a powerhouse capable of handling diverse material thicknesses thanks to its customizable configuration.
- Flame Cutting Capability: Handles carbon steel from 8mm up to 200mm thick. Perfect for structural beams and heavy plates.
- Plasma Cutting Versatility: Compatible with power sources ranging from 65A to 630A. Whether you are cutting thin stainless steel or mid-range aluminum, the AVC (Arc Voltage Control) ensures the torch height stays perfect automatically.
Logistics Note: Because the machine is designed to be disassembled, shipping costs are significantly lower than pre-assembled gantries. It arrives ready for quick assembly, getting you back to production faster.
Combined Table-Type: Technical Specifications at a Glance
We believe in transparency. Here is what powers the Gaochuang Table-Type Series:
- Effective Cutting Area: Customizable (Standard models: 1530, 1540, 1560).
- Drive System: High-torque motors with 2M/YYC Rack & Pinion for zero-backlash movement.
- Control System: User-friendly FangLing System (supports multi-language switching).
- Voltage Flexibility: Adaptable to 110V/220V environments (50/60Hz).
- Customization: We offer optional voltage stabilizers, air compressors, and custom paint colors to match your brand.
Ready to Upgrade Your Workshop Efficiency?
In the world of metal fabrication, a compact footprint has traditionally meant compromising on precision. The Gaochuang Combined Table-Type CNC Cutting Machine shatters this conventional wisdom. It achieves an ultra-compact physical size while inheriting the structural rigidity of a gantry system. This design ensures exceptional machining stability even in tight workshops, guaranteeing pinpoint accuracy whether you’re tackling complex contour cutting or high-precision hole machining. For manufacturers seeking to maximize both space utilization and processing quality, this is more than just a machine—it’s a highly efficient, flexible productivity solution.
The Gaochuang Combined Table-Type CNC Cutting Machine is built for seamless global deployment. Its fully detachable modular design cuts shipping volume and freight costs, making international logistics as easy as local delivery. Rapid on-site assembly requires no specialized tools, minimizing downtime and getting your production line back up fast. This logistical agility, paired with unwavering precision, lets you have both global reach and local manufacturing excellence. For cross-border businesses, it turns supply chain complexity into a competitive edge.
Stop sacrificing stability for portability. Get the machine that fits your room and your production needs.
